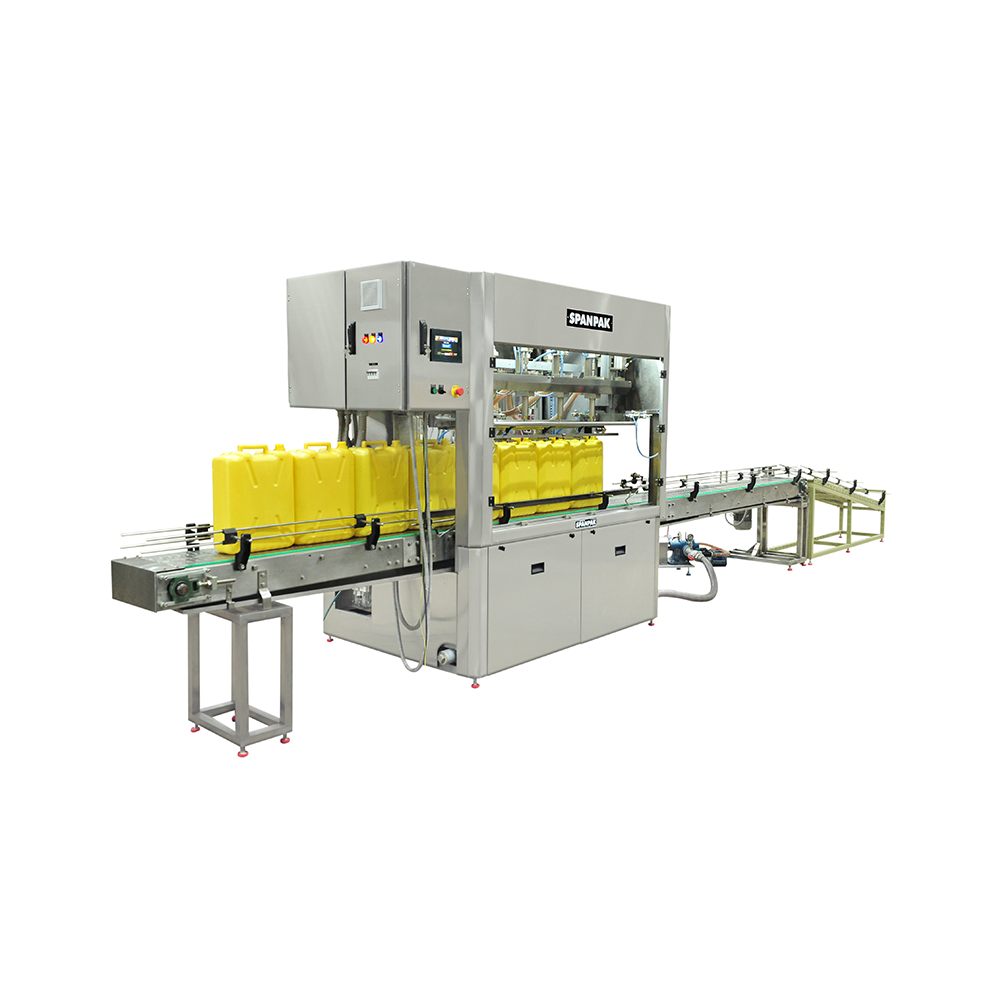

Volumetric Filler Machine
Spheretech’s Volufil is an innovative volumetric filling machine that revolutionizes the filling process for edible and lubricant oils. Engineered with proprietary, in-house flow meters, Volufill ensures unmatched precision and reliability. This advanced machine effortlessly handles volumes ranging from 200ml to 5000ml and 5 liters to 15 liters, accommodating diverse needs without requiring change parts. With precise accuracy of approximately +/- 0.25%, Volufill consistently delivers reliable performance. Whether for food-grade oils or industrial lubricants, Spheretech’s Volufil sets a new standard in efficiency and accuracy for volumetric filling machines
Volufil 5000 CDD Specificatons
| Volufil 5000 CDD | 4X | 6X | 8X |
|---|---|---|---|
| Machine Speed | Bottles/Containers Per Hour | ||
| 500 ml | 1680 | 2520 | 2880 |
| 1000 ml | 1440 | 2160 | 2700 |
| 2000 ml | 1200 | 1680 | 1800 |
| 5000 ml | 720 | 960 | 1320 |
| Conveyor Length (mm) | 3600 | 4800 | 6000 |
| Power (KW) | 4.5 | 5 | 6 |
| Air Pressure (Kg/sq cm) | 5 | 5 | 5 |
Volufil 15000 CDD Specificatons
| Volufil 15000 CDD | 4X | 6X | 8X |
|---|---|---|---|
| Machine Speed | Bottles/Containers Per Hour | ||
| 5 Litre | 720 | 960 | 1080 |
| 15 Litre | 360 | 480 | 600 |
| Conveyor Length (mm) | 3600 | 4800 | 6000 |
| Power (KW) | 4.5 | 5 | 6 |
| Air Pressure (Kg/sq cm) | 5 | 5 | 5 |
Features & Benefits
- Filling Range: 200 ml to 5 Litres & 5 Litres to 15 Litres.
- Versatile: Minimum adjustment required for setting different capacities.
- Nozzle Type: Diving nozzle with positive cut-off.
- Accuracy of Filling: ±0.25% of the filled volume.
- Volume Setting: Touch screen HMI.
- No Container No Fill: Non-contact sensors facilitate “No Container No Fill” as a standard feature.
- Models: Available in 2, 4, 6, and 8 head configurations.
- Drip Arresting Tray: Positioned below the nozzle for accidental drips.
- Integrated Pump: For closed-circuit filling to avoid product contamination.
